Tripwireの監視からSlackインテグレーションへ通知を飛ばす

Kyouhei Horizumi 2022/09/02

サーバー

はじめに

サイトの改竄などの被害が相次いでおり、ついこの前にもニュースで流れていました。

この記事ではサイトの改竄を検知が出来る Tripwire の設定と、また Tripwire のレポートを Slack のインテグレーションを使って受け取る方法についても紹介します。

ここでの構成例

Webサーバー：さくらのVPS（OS：Ubuntu 20.04）

メールサーバー：さくらのメールボックス

flowchart LR
		subgraph "さくらのVPS（Webサーバー）"
	    A[Tripwire] -->|"sendmail"| B[Postfix]
		end
		subgraph "さくらのメールボックス（メールサーバー）"
		  B -->|"SMTP/SASL(587)"| C[SMTPサーバー]
		end
    C -->|"SMTP(25)"| D[Slackインテグレーション]

DNS例

Webサーバーのドメイン： example.com

Slackインテグレーションのメールアドレス： tripwire@example.slack.com

Postfixのインストール + 設定を変更

apt install postfix
vim /etc/postfix/main.cf

relayhost = [mail.example.com]:587

smtp_sasl_auth_enable = yes
smtp_sasl_password_maps = hash:/etc/postfix/relay_password
smtp_sasl_security_options = noanonymous

vim /etc/postfix/master.cf

submission inet n       -       y       -       -       smtpd
  -o smtpd_sasl_auth_enable=yes
  -o smtpd_recipient_restrictions=permit_sasl_authenticated,reject

リレー先（さくらのメールサーバー）のユーザー名とパスワードを追記します。

vim /etc/postfix/relay_password

[mail.example.com]:587 username:password

postmap /etc/postfix/relay_password
systemctl restart postfix

Tripwireのインストール

apt install tripwire

サイトキーパスフレーズ と ローカールキーパスフレーズ を決めるので、忘れないように控えておきます。

設定ファイルの変更

cp /etc/tripwire/twcfg.txt /etc/tripwire/twcfg.txt.org
vim /etc/tripwire/twcfg.txt

ROOT                    =/usr/sbin
POLFILE                 =/etc/tripwire/tw.pol
DBFILE                  =/var/lib/tripwire/$(HOSTNAME).twd
REPORTFILE              =/var/lib/tripwire/report/$(HOSTNAME)-$(DATE).twr
SITEKEYFILE             =/etc/tripwire/site.key
LOCALKEYFILE            =/etc/tripwire/$(HOSTNAME)-local.key
EDITOR                  =/usr/bin/editor
LATEPROMPTING           =false
LOOSEDIRECTORYCHECKING  =true
MAILNOVIOLATIONS        =false
EMAILREPORTLEVEL        =3
REPORTLEVEL             =4
SYSLOGREPORTING         =true
MAILMETHOD              =SENDMAIL
MAILPROGRAM             =/usr/sbin/sendmail -oi -t -f tripwire@example.com
TEMPDIRECTORY           =/tmp

暗号化

twadmin -m F -c /etc/tripwire/tw.cfg -S /etc/tripwire/site.key /etc/tripwire/twcfg.txt

ポリシーファイル（twpol.txt）

DocumentRoot（ /var/www/html ）に対して監視をして、 LaravelのSessionファイルは除外する 場合です。

@@section GLOBAL
# Tripwireに関連するパスを定数として指定
TWBIN = /usr/sbin;
TWETC = /etc/tripwire;
TWVAR = /var/lib/tripwire;
@@section FS
# プロパティを定数として指定
SEC_BIN     = $(ReadOnly);
SEC_CONFIG  = $(Dynamic);
# 重要度を定数として指定
SEC_LOW     = 33;
SEC_MED     = 66;
SEC_HI      = 100;
(
    rulename = "DocumentRoot",
    emailto  = "example@fourier.slack.com",
    severity = $(SEC_MED),
    recurse  = true
)
{
    /var/www/html   ->   $(SEC_CONFIG);
    !/var/www/html/example.com/shared/storage/framwork/sessions;
}

暗号化

twadmin -m P -c /etc/tripwire/tw.cfg -p /etc/tripwire/tw.pol -S /etc/tripwire/site.key /etc/tripwire/twpol.txt

差分DBの初期化

tripwire --init

Tripwireの実行

tripwire --check --email-report
tripwire -m -c -M #（↑のシノニム）

--email-report / -M を付けると、ファイルに変更があった場合（= Total violations foundが1以上の場合）にメールを送信されます。

root@XXXXXX:/var/www/html# tripwire -m c
Parsing policy file: /etc/tripwire/tw.pol
*** Processing Unix File System ***
Performing integrity check...
Wrote report file: /var/lib/tripwire/report/XXXXXX-20220630-184642.twr

Open Source Tripwire(R) 2.4.3.7 Integrity Check Report

Report generated by:          root
Report created on:            Thu Jun 30 18:46:42 2022
Database last updated on:     Never

===============================================================================
Report Summary:
===============================================================================

Host name:                    XXXXXX
Host IP address:              XXXXXX
Host ID:                      None
Policy file used:             /etc/tripwire/tw.pol
Configuration file used:      /etc/tripwire/tw.cfg
Database file used:           /var/lib/tripwire/XXXXXX.twd
Command line used:            tripwire -m c

===============================================================================
Rule Summary:
===============================================================================

-------------------------------------------------------------------------------
  Section: Unix File System
-------------------------------------------------------------------------------

  Rule Name                       Severity Level    Added    Removed  Modified
  ---------                       --------------    -----    -------  --------
  DocumentRoot                    66                0        0        0
  (/var/www/html)

Total objects scanned:  39893
Total violations found:  0

===============================================================================
Object Summary:
===============================================================================

-------------------------------------------------------------------------------
# Section: Unix File System
-------------------------------------------------------------------------------

No violations.

===============================================================================
Error Report:
===============================================================================

No Errors

-------------------------------------------------------------------------------
*** End of report ***

Open Source Tripwire 2.4 Portions copyright 2000-2018 Tripwire, Inc.  Tripwire is a registered
trademark of Tripwire, Inc. This software comes with ABSOLUTELY NO WARRANTY;
for details use --version. This is free software which may be redistributed
or modified only under certain conditions; see COPYING for details.
All rights reserved.
Integrity check complete.

例えばなんらかのファイルを変更すると･･･

root@XXXXXX:/var/www/html# touch index2.html
root@XXXXXX:/var/www/html# tripwire -m c
Parsing policy file: /etc/tripwire/tw.pol
*** Processing Unix File System ***
Performing integrity check...
Wrote report file: /var/lib/tripwire/report/XXXXXX-20220630-184729.twr

Open Source Tripwire(R) 2.4.3.7 Integrity Check Report

Report generated by:          root
Report created on:            Thu Jun 30 18:47:29 2022
Database last updated on:     Never

===============================================================================
Report Summary:
===============================================================================

Host name:                    XXXXXX
Host IP address:              XXXXXX
Host ID:                      None
Policy file used:             /etc/tripwire/tw.pol
Configuration file used:      /etc/tripwire/tw.cfg
Database file used:           /var/lib/tripwire/XXXXXX.twd
Command line used:            tripwire -m c

===============================================================================
Rule Summary:
===============================================================================

-------------------------------------------------------------------------------
  Section: Unix File System
-------------------------------------------------------------------------------

  Rule Name                       Severity Level    Added    Removed  Modified
  ---------                       --------------    -----    -------  --------
* DocumentRoot                    66                0        0        1
  (/var/www/html)

Total objects scanned:  39893
Total violations found:  1    // 0 を 1 に変更

===============================================================================
Object Summary:
===============================================================================

-------------------------------------------------------------------------------
# Section: Unix File System
-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Rule Name: SamplePolicy (/var/www/html)
Severity Level: 66
-------------------------------------------------------------------------------

Modified:
"/var/www/html/index2.html"

===============================================================================
Error Report:
===============================================================================

No Errors

-------------------------------------------------------------------------------
*** End of report ***

Open Source Tripwire 2.4 Portions copyright 2000-2018 Tripwire, Inc.  Tripwire is a registered
trademark of Tripwire, Inc. This software comes with ABSOLUTELY NO WARRANTY;
for details use --version. This is free software which may be redistributed
or modified only under certain conditions; see COPYING for details.
All rights reserved.
Integrity check complete.

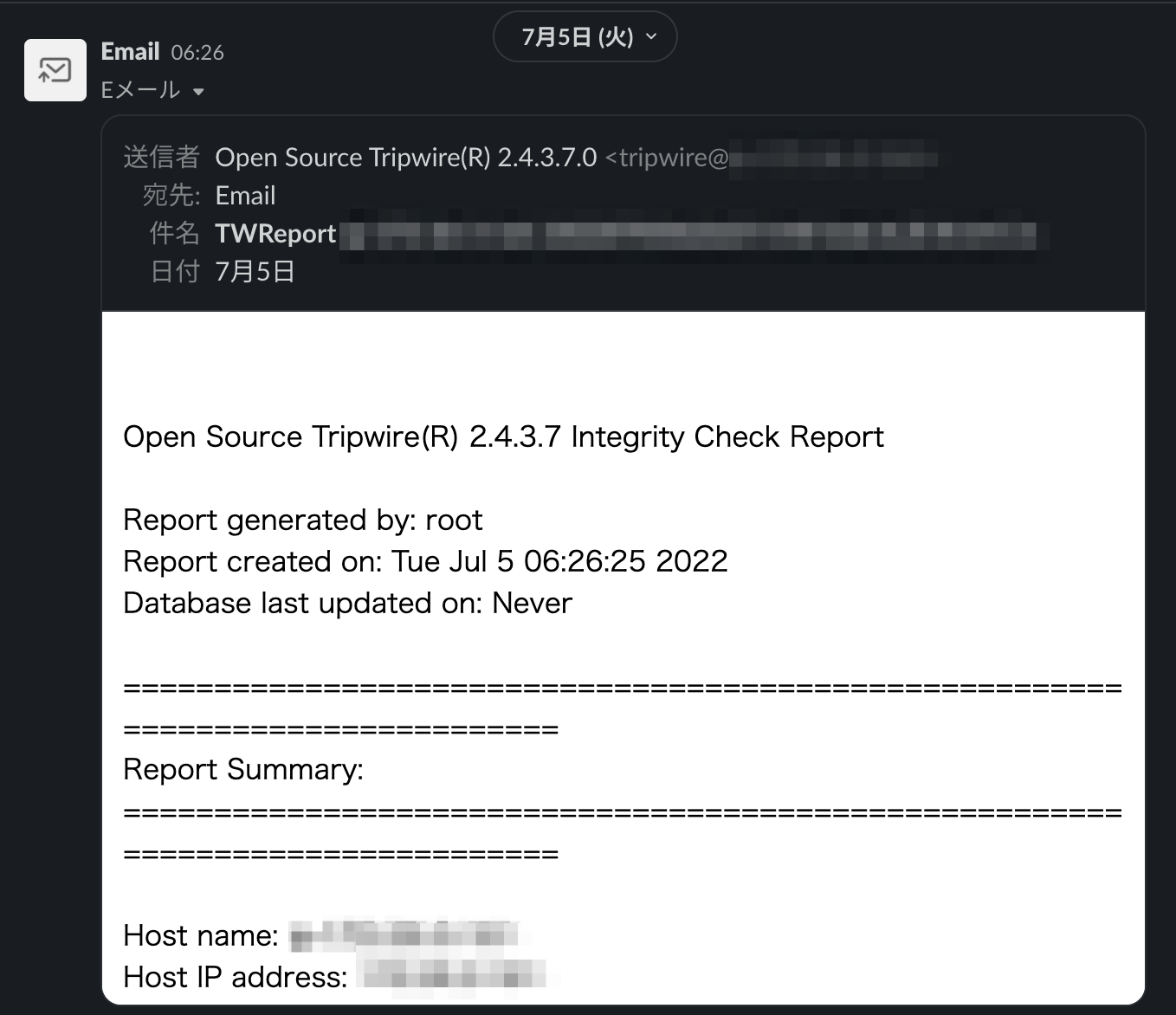

メールが送信されます。

cronの設定

UbuntuにインストールするとCronが入れているので、それを編集します。

vim /etc/cron.daily/tripwire

+ の部分を追記

#!/bin/sh -e

tripwire=/usr/sbin/tripwire
+ LOCALPASS='password' # ローカルパスフレーズ

[ -x $tripwire ] || exit 0

umask 027

$tripwire --check --quiet --email-report
+ $tripwire --init -P $LOCALPASS

毎回初期化をすることによって、以前検出された変更点は検出されなくなります。
